Hinowa LL20:10

Hinowa 20m articulated tracked spider boom with fly jib.

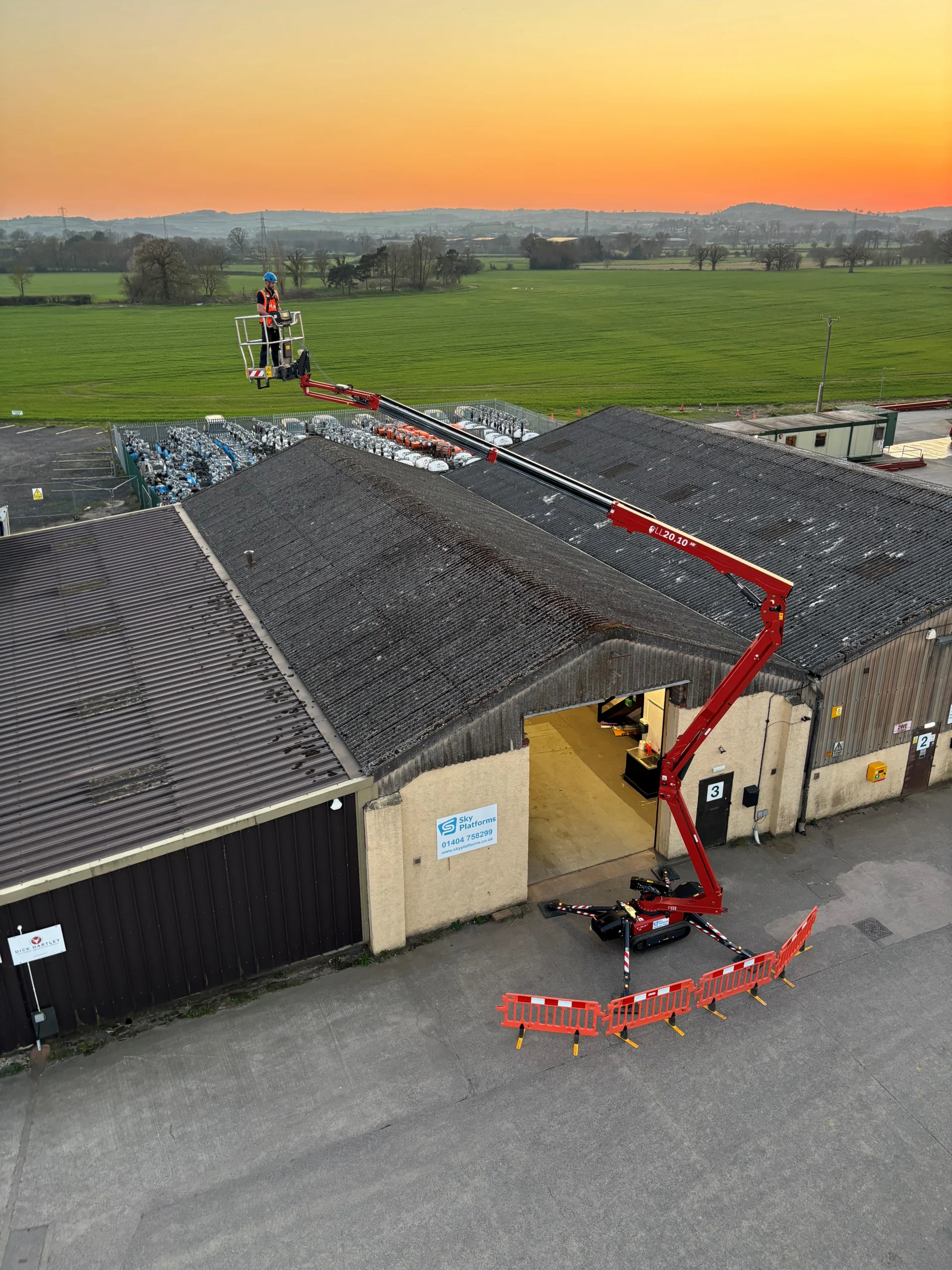

The Hinowa Lightlift 20.10 is a compact tracked spider boom offering a maximum working height of 20.1 metres and a horizontal outreach of 9.7 metres. Designed for flexibility and productivity, it can safely lift two operators with tools (230 kg SWL) across its full working envelope. Its compact footprint, 360° turret rotation, and all-terrain capabilities make it ideal for confined or challenging sites, while multiple power options—including diesel, mains electric (110V/220V), and lithium battery—allow versatile, low-emission operation.

Hinowa LL20:10 Highlights:

20.1m Maximum Working Height with 9.7m Outreach – Perfect for maintenance, tree work, and construction in tight spaces.

High Lift Capacity – 230 kg SWL accommodates two operators plus tools.

Compact & Manoeuvrable – Tracked base allows access through standard doors and over rough terrain.

360° Turret Rotation & Wide Working Envelope – Smooth, versatile operation across the full platform reach.

Flexible Power Options – Diesel, mains electric (110V/220V), or lithium battery for low-emission sites.

Specification

Maximum Working Height	20.15 m
Platform Height	18.05 m
Horizontal Outreach	9.7 m
Up-and-Over Reach	8.15 m
Safe Working Load (SWL)	230 kg
Platform/Cage Size	1.34 × 0.69 × 1.10 m
Turret Rotation	360° (non-continuous)
Stowed Length	5.01 m

Stowed Width	0.8–1.48 m
Stowed Height	1.99 m
Deployed Width	2.93 m
Machine Weight	2,880 kg
Power Options	Diesel, mains electric 110V/220V, lithium battery
IPAF Category	1b
Operational Use	Outdoor, all-terrain capable
