A20-15TJ
3.5t. Ascendant 20m telescopic truck mount boom with fly jib.

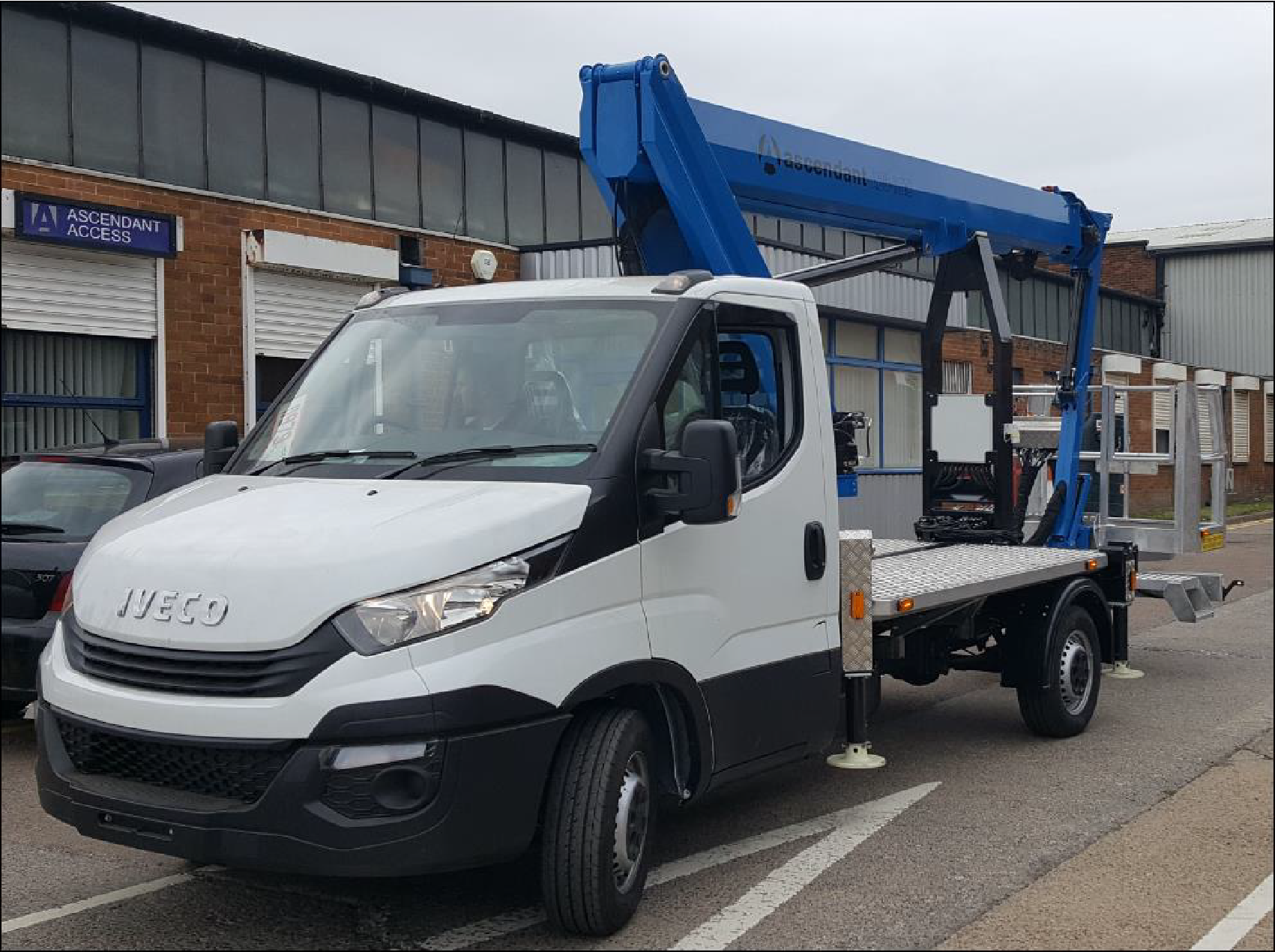

The Ascendant A20-15TJ Truck Mount is a versatile and compact truck-mounted access platform designed to deliver safe and efficient working at heights of up to 20 metres. Mounted on an Iveco Daily chassis with a 3,500kg GVW, it offers excellent mobility while remaining suitable for operators with standard driving licences in many cases. Its telescopic boom and fly boom configuration provide precise control and smooth movement, making it ideal for a wide range of tasks including maintenance, installation, signage, and building works.
Engineered for reliability and ease of operation, the platform features direct hydraulic proportional controls that allow smooth and accurate positioning throughout its working envelope. The machine’s robust design incorporates oversized structural elements and fail-safe hydraulic systems to enhance safety while minimising maintenance requirements. Multiple outrigger configurations allow it to operate effectively even in confined or restricted spaces.
With a spacious aluminium cage suitable for two operators and tools, as well as powered cage rotation for improved positioning, the A20-15TJ is built for productivity and operator comfort. Its flexible setup options, strong outreach capability, and advanced safety interlocks make it a dependable choice for contractors and maintenance teams requiring reliable height access on site.
A20-15TJ Highlights:
20m Maximum Working Height – Ideal for maintenance, construction, signage installation, and property management tasks.
15m Horizontal Outreach – Excellent reach allows operators to access difficult areas without repositioning the vehicle.
Flexible Outrigger Configurations – Full-width, one-sided, and narrow jacking setups enable operation in confined spaces.
Smooth Hydraulic Proportional Controls – Precise and responsive platform movement for safer and more efficient operation.
Specification
| Safe Working Load (SWL) | 230kg(120Kg) |
| Max working height | 20m |
| Max platform height | 18m |
| Max working outreach | 15m |
| Cage dimensions | 0.73m x 1.4m x 1.1m high |
| Cage rotate | 160 deg. |
| Cage Capacity | 2 persons with tools |
| Closed height | 3.1m |
| Closed width | 2.1m |
| Travelling length | 7.9m |
| Weight of unit | 3370kg including vehicle (approx.) |
| Fly Boom Length | 2.2m |
| Fly Boom Operating Arc | 125° |
| Vehicle Chassis | Iveco Daily (or similar) |
| Gross Vehicle Weight | 3,500kg |
| Approx. Machine Weight | 3,370 kg (including vehicle) |
| Jack Spread (Full Width) | 4.1m |
| Jack Spread (One-Sided) | 3.15m |
| Jack Spread (Narrow) | 2.35m |
