A26-17TJ

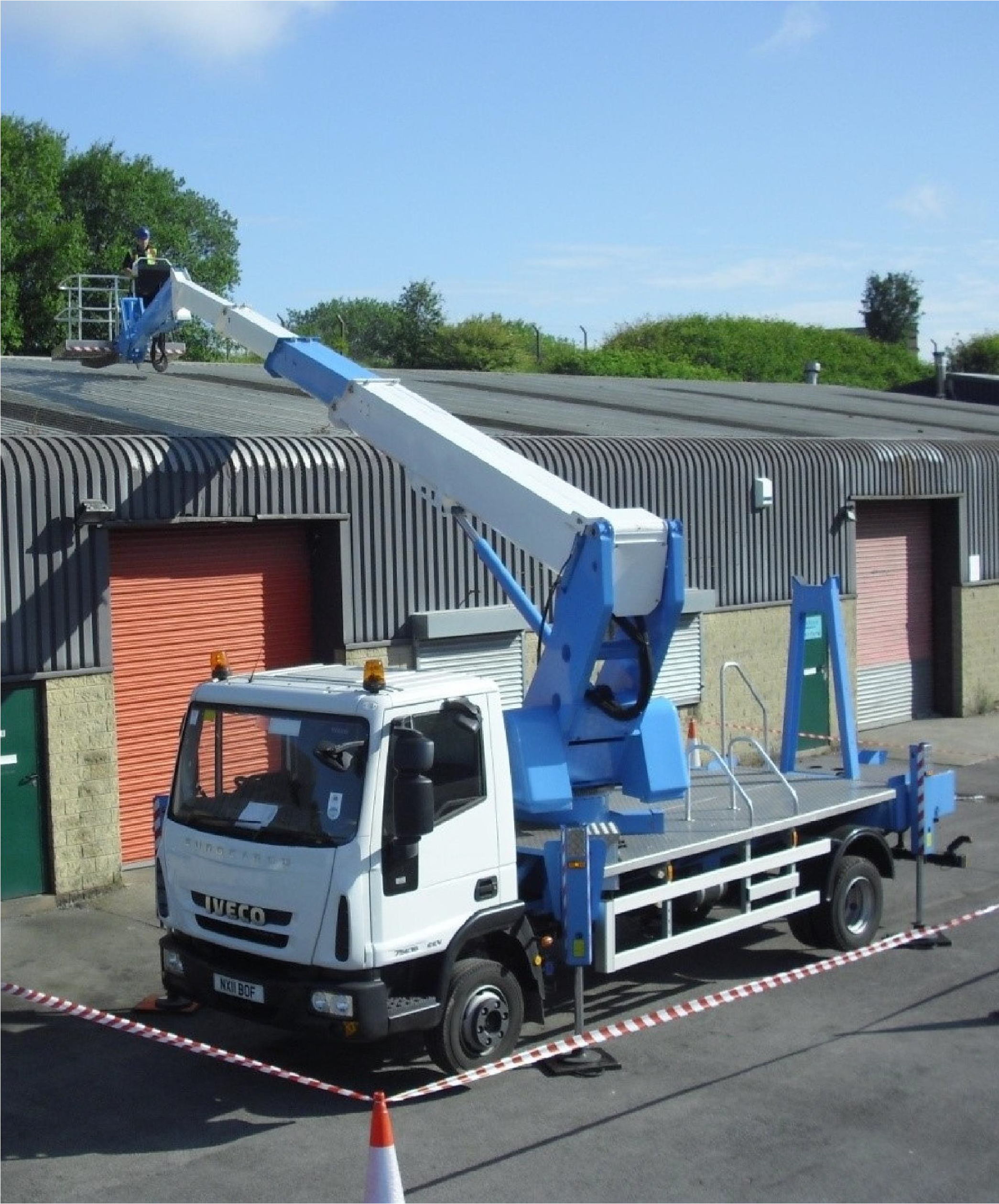

7.5t. Ascendant 26m telescopic truck mount boom with fly jib.
The Ascendant 26m Truck Mount is a heavy-duty 26m telescopic boom access platform with a fly jib, mounted on a 7.5-tonne+ chassis cab. Designed for demanding work-at-height applications, it combines long reach, robust stability, and precise hydraulic controls. Its structural aluminium cage and multiple jacking configurations make it ideal for safe operation in both open and confined spaces, supporting up to three operators and their tools.
A26-17TJ Highlights:
26m Maximum Working Height with 17m Outreach – Ideal for construction, maintenance, and high-level installations.
Flexible Stabiliser Options – Full, one-sided, and narrow jacking allow operation in confined or restricted areas.
360° Turret & 160° Cage Rotation – Provides excellent manoeuvrability and positioning.
Robust Safety Systems – Includes hydraulic proportional controls, emergency lowering handpump, interlocks, and warning lights for stabilisers, PTO, and booms.
Specification
| Maximum Working Height | 26 m |
| Maximum Horizontal Reach (Full Jacked) | 17 m |
| Maximum Horizontal Reach (Narrow Jacked) | 10 m |
| Safe Working Load (SWL) | 280 kg |
| Platform Size | 1.0 × 1.8 m (1.1 m high) |
| Turret Rotation | 360° |
| Cage Rotation | 160° powered |
| Boom Type | Four-section all steel telescopic + 2.4 m jib |
| Minimum Vehicle GVW | 7,500 kg |
| Typical Wheelbase | ~4,400 mm |
| Stabiliser Spread – Full | 4.3 m |
| Stabiliser Spread – One-Sided | 3.2 m |
| Stabiliser Spread – Narrow | 2.2 m |
| Power Source | PTO (vehicle) |
| Approx. Kerb Weight | 7,300 kg |
