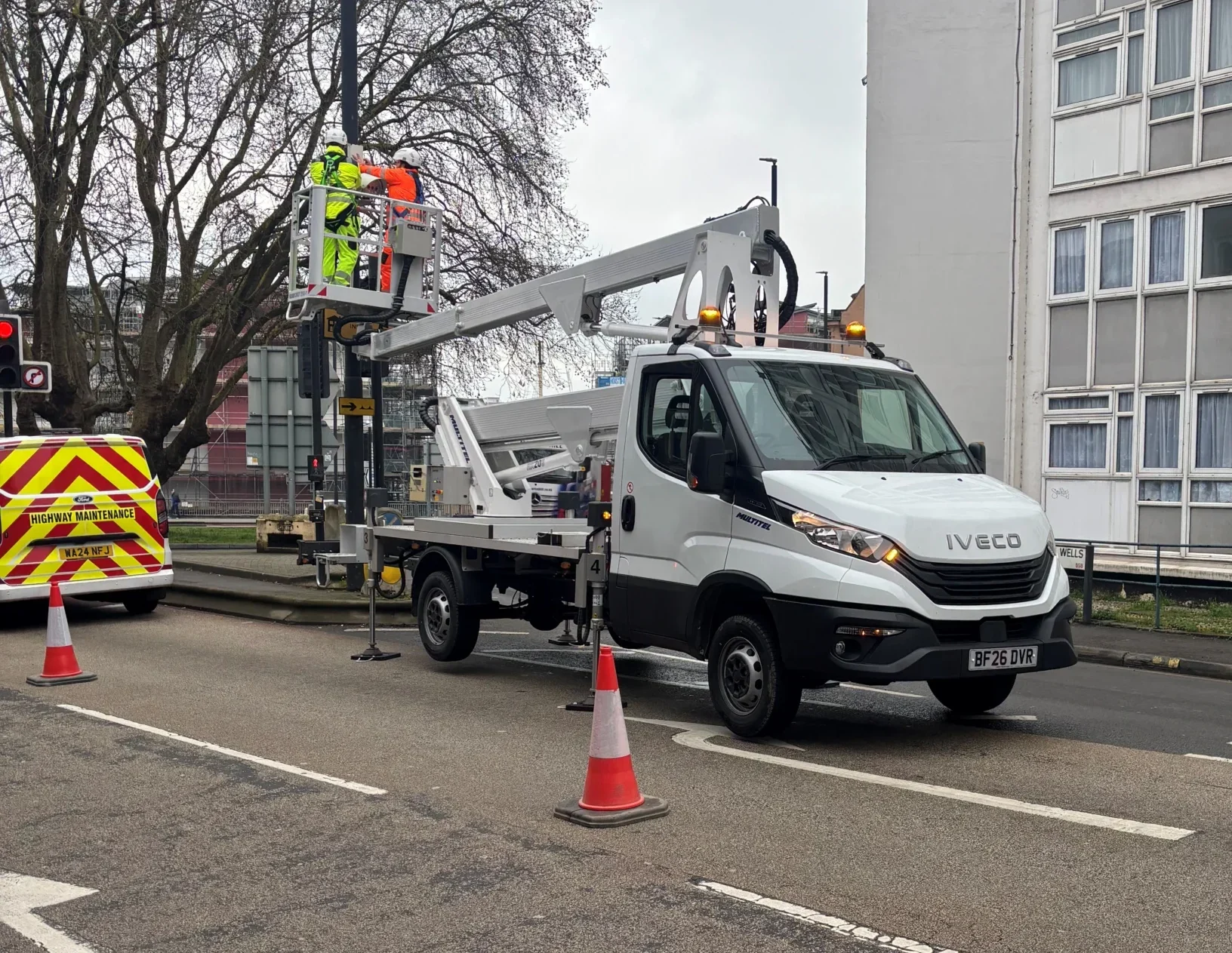

HX200EX

3.5t. Multitel 20m articulated truck mount boom.

The Multitel HX 200 EX is a compact truck-mounted access platform offering safe and efficient working at heights up to 20 metres. Designed for versatility and precision, it features proportional hydraulic controls from both control posts, hydraulic cage levelling, and multi-stage telescopic cylinders, making positioning smooth and responsive. Its integrated internal hose and cable ducts and robust safety systems, including emergency stops and hand pump operation, ensure reliability and safety in all work environments.

HX200EX Highlights:

20m Working Height – Suitable for maintenance, signage, and building works.

Hydraulic Cage Levelling – Keeps the platform stable and safe even on uneven surfaces.

Synchronous Multi-Stage Telescope Cylinders – Smooth, precise boom extension and retraction.

Safety-Focused Design – Includes hydraulic check valves, emergency stops, and engine start/stop at both control stations.

Specification

Maximum Working Height	20.00 m
Maximum Platform Height	18.00 m
Maximum Working Outreach	9.20–9.60 m
Safe Working Load (SWL)	225 kg
Turret Rotation	380°
Cage Rotation	65° + 65°
Boom Telescopic Amplitude	6.16 m
